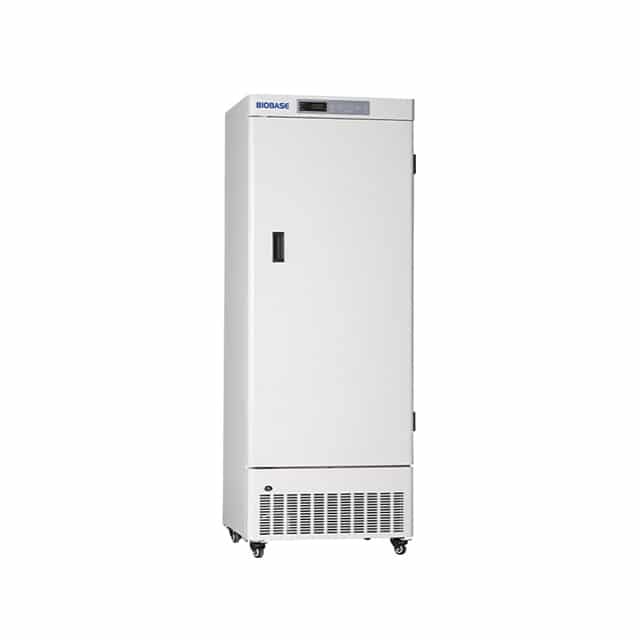

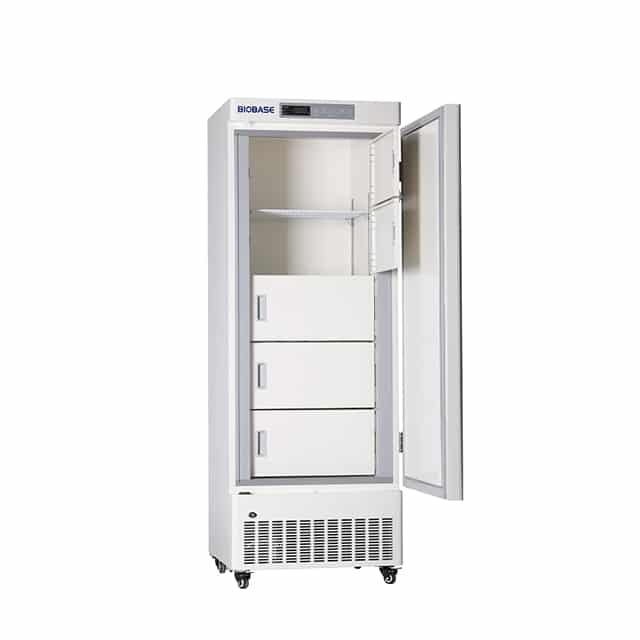

-40℃ Freezer 268-528L

-40℃ Freezer 268-528L

Deep freezer manual series products are applied to places needing storage at constant temperature, such as hospitals, epidemic prevention stations, blood banks, scientific research institutions, colleges and universities, biological pharmacies, genetic engineering, entrepreneurs, etc. The storing temperature in the body can set by the temperature button on the control panel. The application is convenient and the performance is reliable.

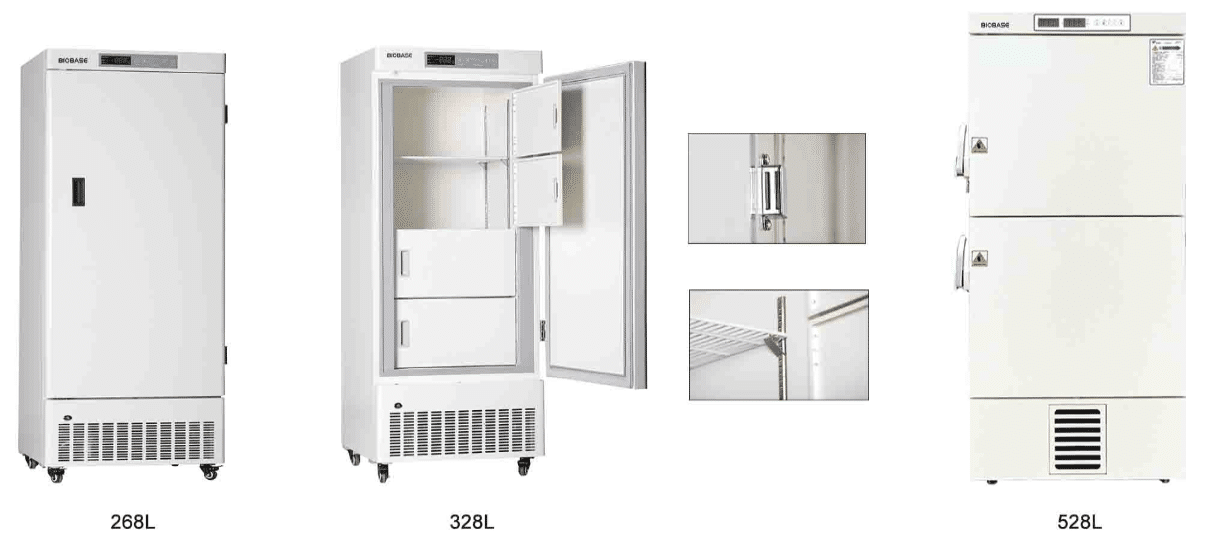

ModelBDF-40V268BDF-40V328BDF-40V528
External Size(W*D*H)673*676*1630mm673*676*1886mm900*819*1828mm
Internal Size(W*D*H)508*455*1137mm508*455*1393mm651*631*635mm
Capacity268L328L528L
TypeVertical
Temp. Range-30℃~-40℃-20~-40℃
Temp. Accuracy0.1℃
Control SystemMicroprocessor Control

LED Display

AlarmHigh or low temperature alarm,power failure alarm,door ajar alarm,temperature controllers failure alarm,sensor failure alarm

(of BDF-40V258 without this alarm)

Refrigeration TypeDirect Refrigeration
RefrigerantR290R600a and R290R290
CompressorUnicompressor,imported famous brand compressor
MaterialStructureUniboday design
InternalSprayed steel plate
ExternalSprayed steel plate
Drawer/Shelf3pcs shelves4pcs shelves18 drawers
Consumption300W340W
Power Supply AC220V±10%, 50/60HZ; 110V±10%, 60Hz
Package Size760*760*1750mm750*760*2030mm930*970*2000mm
Gross Weight118kg132kg184kg
