-40 Degrees Horizontal Refrigerator 100-485L

-40 Degrees Horizontal Refrigerator 100-485L

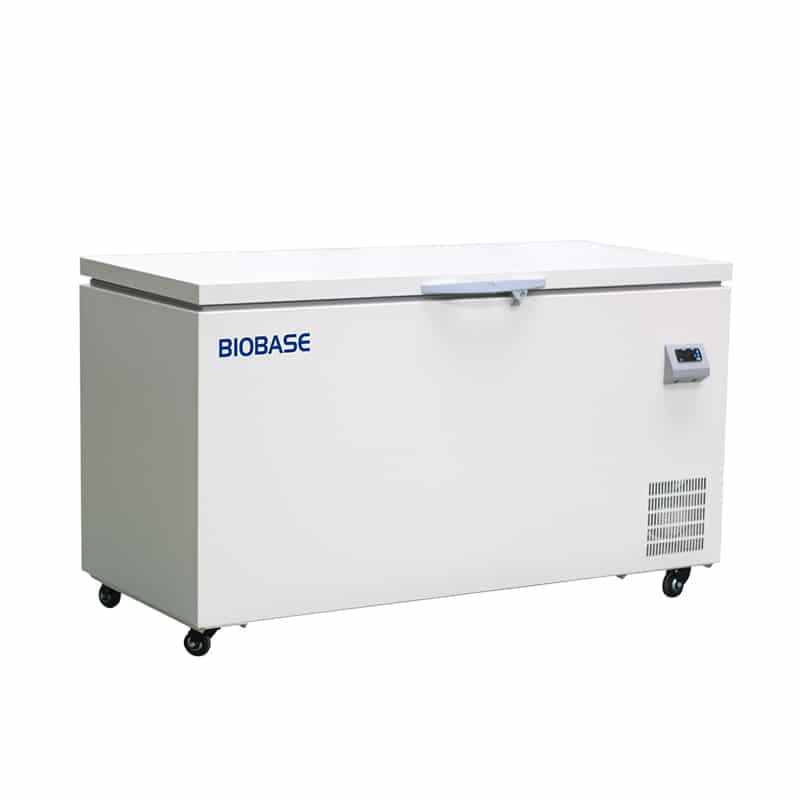

-40℃Low Temperature Freezer The Low Temperature Freezer offers a wide variety of research and storage application, such as low temperature scientific experiments, preservation of plasma, biomaterial, vaccine, biomedical properties of military products. It is suitable for research institutes, electronic industries, chemical engineering industries, hospitals, sanitation and antiepidemic stations, university laboratories, military industries.

Model:

ModelBDF-40H100BDF-40H200BDF-40H300BDF-40H485
External Size(L*W*H) mm680*580*9351160*765*8851530*765*8851655*755*915
Capacity105L220L320L485L
Temperature Range-10℃~-40℃-15℃~-40℃-20℃~-40℃
Temperature Accuracy0.1℃
Control SystemMicroprocessor Control, LED Display




Alarm

BDF-40H100&BDF-40H485: High or low temperature alarm, sensor failure alarm,

Power failure alarm,Temperature controller failure alarm

BDF-40H200&BDF-40H300: High  temperature alarm, sensor failure alarm

Refrigeration TypeDirect Refrigeration
RefrigerantR290R404a and R23R290
EvaporatorMaterial of Copper




Construction

StructureUnibody Design & Mono-assembly foaming (Rigid polyurethane insulation material)
Internal material304 Stainless Steel
External materialCold-rolled steel coated with anti-bacteria powder
Consumption160W380W460W495W
Power SupplyAC220V±10%, 50/60Hz; 110V,60Hz
Package Size(L*W*H) mm750*700*10401230*835*10551600*835*10551775*900*1060
Gross Weight(kg)65kg143kg170kg183kg
