Class I Biological Safety Cabinet

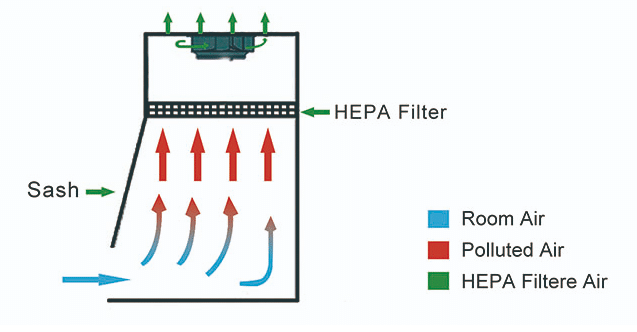

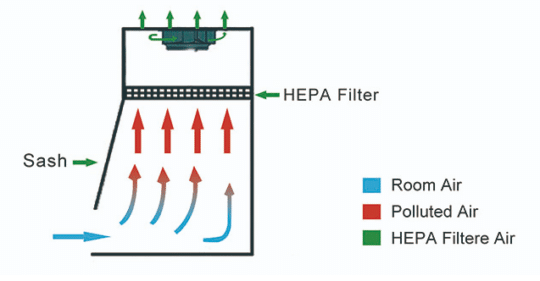

The Class I biological safety cabinet can adequately protect the harm caused by aerosol pollution, and effectively protect the personnel and environment. It is negative pressure air inlet in front window of Class I biological safety cabinet which can protect the operators and the exhaust air goes through HEPA filter which can protect the environment. The Class I Biological safety cabinet can be placed on anywhere with it’s simple and portable structure.

Advantage:

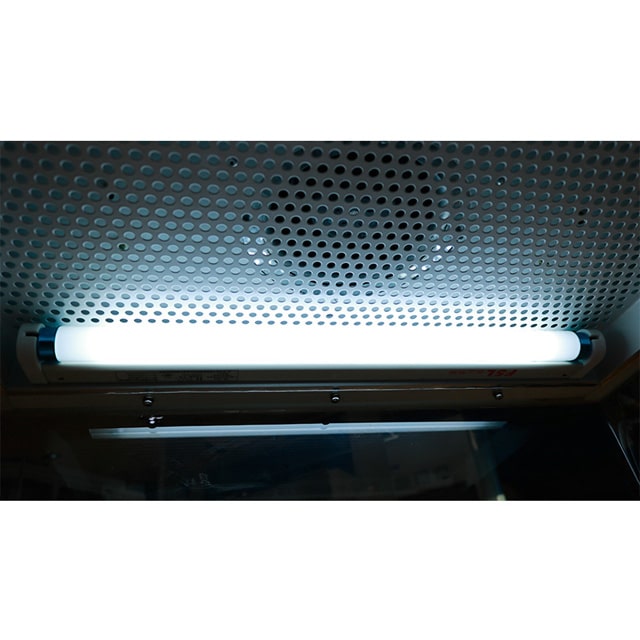

1. UV lamp for sterilization.

2. Soft touch control panel, LCD display.

3. Energy-saving, high efficiency, low noise.

4. With memory function in case of power-failure.

5. One piece 304 stainless steel work stable, easy for cleaning.

6. Stable air flow system; protecting to person and environment.

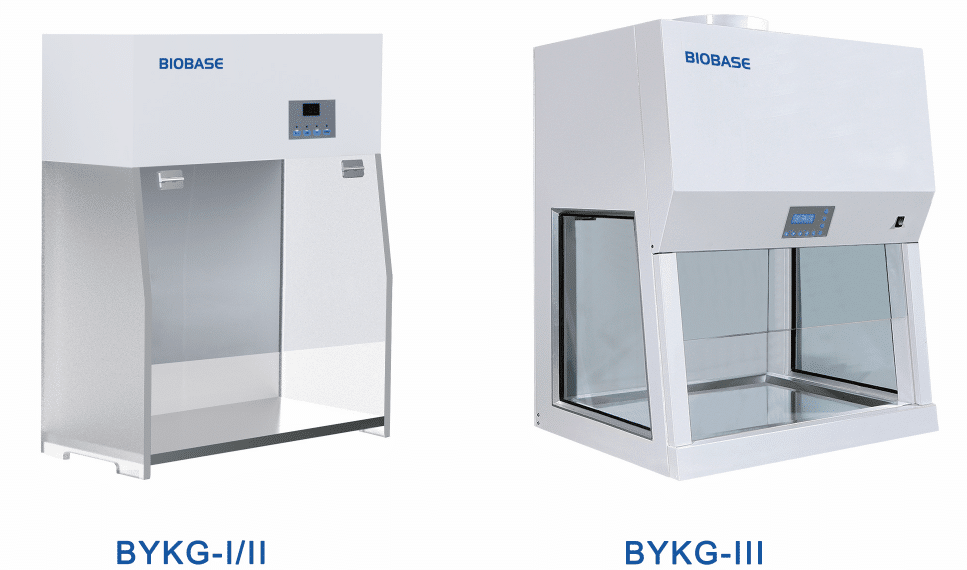

Models:

Model	BYKG-I	BYKG-II		BYKG-III	BYKG-V
External Size(WDH)	550395730mm	700550900mm		9007131250mm	11006951924mm
Internal Size(WDH)	540385440mm	680540500mm		800635600mm	968695630mm
HEPA Filter	99.999% efficiency at 0.3 μm
Airflow Velocity	>0.3m/s	0.75~1.0m/s		>0.3m/s	0.75-1.0m/s
Noise	≤60dB	≤55dB		≤60dB	≤67 dB
Illuminating Lamp	4W*1 LED Lamp	8W*1 LED Lamp		8W*1 LED Lamp	21W*2 Fluorescent lamp
UV Lamp	15W*1	20W*1		20W*1	20W*1
UV Lamp	Emission of 253.7 nanometers for most efficient decontamination BYKG-III has UV timer function and the display could indicate the UV life.
Power Consumption	150W	≤160W		≤400W	≤350W
Work Surface Height	/		/	/	750mm
Caster	/		/	/	Universal caster
Main Body Construction	PMMA			Cold-rolled steel with anti-bacteria powder coating
Work Table	304 stainless steel
Power Supply	AC220V±10% , 50/60Hz; 110V±10% ,60Hz
Standard Accessory	LED lamp, UV lamp*2				Fluorescent lamp, UV lamp*2, Base stand
OptionalAccessory	Electric height adjustable base stand
Gross Weight	38kg	68kg		147kg	185kg
Package Size(WDH)	710550950mm	8707201170mm		10608701440mm	12708802230mm
