EN Certified Biological Safety Cabinet

This cabinet defined as class II A2 type microbiological safety cabinet. It totally meets that international standard for biological cabinet EN 12469:2000 standard. Microbiological safety cabinet is a kind of negative pressure filtration system for protecting operator, the laboratory environment and work material.

Three protection: operator, sample and environment. Airflow system: 70% air recirculation, 30% air exhaustA2 Cabinet is suitable for working with microbiological research in the absence of volatile or toxic chemicals and radionuclide.

Advantage:

1. Large LCD display, all information displayed.

2. Automatic air speed adjustable with filter block.

3.With memory function in case of power-failure.

4. Side & back wall is made up of single piece stainless steel.

5. Interlock function: UV lamp and front window; UV lamp and blower, fluorescent lamp; Blower and front window.

6. Front 10°slanted to offer operator comfort while working for long time, reduce glare and maximize reach into the work area.

Models：

Model		BSC-3FA2 (3′)		BSC-4FA2(4′)
External Size(WDH)		10877752265mm		1383×775×2295mm
Internal Size(WDH)		910600660mm		1210×600×660mm
Work Surface Height			750mm
Max Opening			520mm (21’’)	550mm (22’’)
Tested Opening			Safety height 200mm (8’’)
Airflow Volume	Inflow		348m3/h(205cfm)	462m3/h(272cfm)
	Down flow		65%:649m3/h(382cfm)	65%:863m3/h(507cfm)
	Exhaust		35%:348m3/h(205cfm)	35%:462m3/h(272cfm)

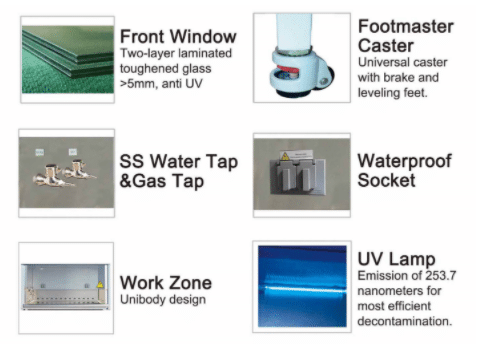

Front Window			Manual. laminated toughened glass ≥6mm. Anti UV
HEPA Filter			Two, 99.995% efficiency at 0.3um, filter life indicator
Filter Guard Type			Aluminum alloy frame
Noise			EN 12469≤58 dB
Illumination			≥1000Lux
Display			LCD Display
Waterproof Socket			2, Total consumption: ≤500W
Tap			Water tap1, Gas tap 1
Ground Resistance			≤ 0.10Ω
Power Supply			AC230V, 50Hz
Consumption			≤500W	≤600W
Alarm			Abnormal airflow velocity; Filter replacement; Front window at unsafe height
AC Motor			One ECM motor, 230V acceptable, Speed adjustable, high efficiency and low power consumption
Material			Working area: 304stainless steel Frame and decorative plate: cold-rolled steel with anti-bacteria power coating
UV Lamp			20W	30W
			Germicidal UV lamp, Emission of 253.7 nanometers for most efficient decontamination, UV timer, UV life indicator
Fluorescent lamp			12W*2	14W*2
Standard Accessory			Fluorescent lamp, UV lamp *2, Base stand, SS water & gas taps, Drain valve, Waterproof sockets, stainless Steel I.V. bar with 10 hooks.
Optional Accessory			Armrest, Airflow tester, Formalin fumigation sterilizer, Infrared sterilizer, Remote control, Electric height adjustable base stand, Motorized front window
Package Size (WDH)			125010801840mm	154010801900mm
Gross Weight			270kg	334kg
