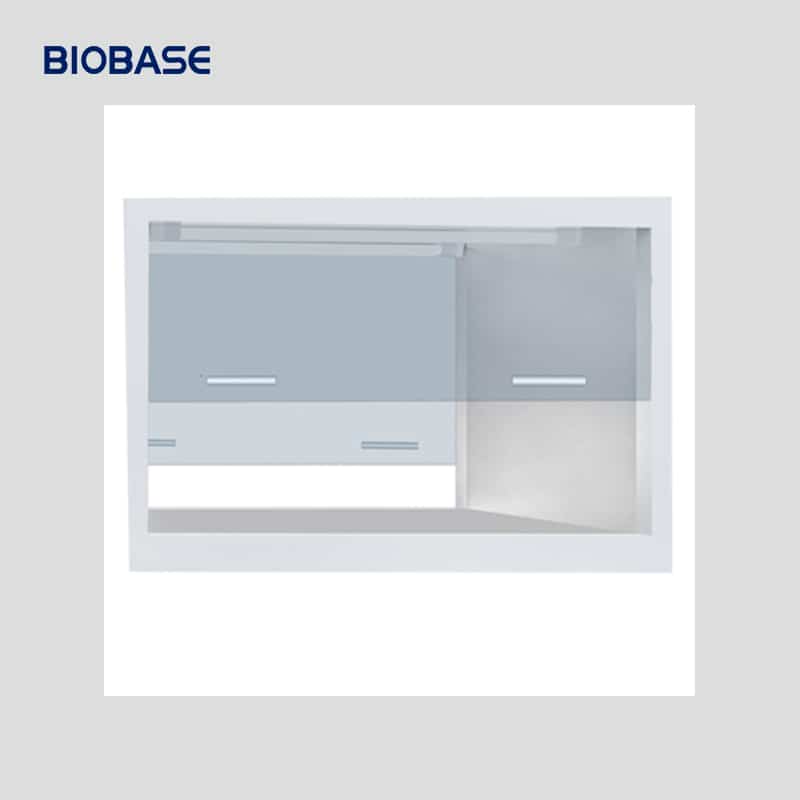

Vertical Laminar Flow Cabinet

Vertical Laminar Flow Cabinet

Laminar Flow Cabinet is a work bench or similar enclosure, which creates a particle-free working environment by taking air through a filtration system and exhausting it across a work surface in a laminar or unidirectional air stream.

The laminar flow cabinet is enclosed on the sides and kept under constant positive pressure in order to prevent the infiltration of contaminated room air.

Laminar flow cabinet is widely used in medical research laboratories, hospitals, manufacturing facilities and other research and production environments.

Laminar Flow Cabinet-sample protection only

Laminar Flow Cabinet is a work bench or similar enclosure, which creates a particle-free working environment by taking air through a filtration system and exhausting it across a work surface in a laminar or unidirectional air stream.

The laminar flow cabinet is enclosed on the sides and kept under constant positive pressure in order to prevent the infiltration of contaminated room air.

Laminar flow cabinet is widely used in medical research laboratories, hospitals, manufacturing facilities and other research and production environments.

Models:

ModelBBS-V680BBS-V800BBS-DDC BBS-SDC
External Size

(W*D*H), mm

680*410*1160802*650*15501040*615*1770 1440*615*1770
Internal Size

(W*D*H), mm

 630*375*615800*530*540940*540*545 1340*540*545
Work Surface

Height

 /660mm750mm 750mm
Display LED Display
Airflow Velocity Average of 0.3~0.5m/s, air speed adjustable.
Material Main Body: Cold-rolled steel with anti-bacteria powder coating
 Work Table: 304 stainless steel(except model BBS-V680)
Pre-filter Polyester fiber, washable
HEPA Filter 99.999% efficiency at 0.3um
Noise <65dB
Front Window /Manual,5mm toughened glass, anti-UV
Max Opening /490mm310mm310mm
Illuminating LampFluorescent Lamp

8W*1

LED Lamp

8W*1

LED Lamp

12W*1

LED Lamp

16W*1

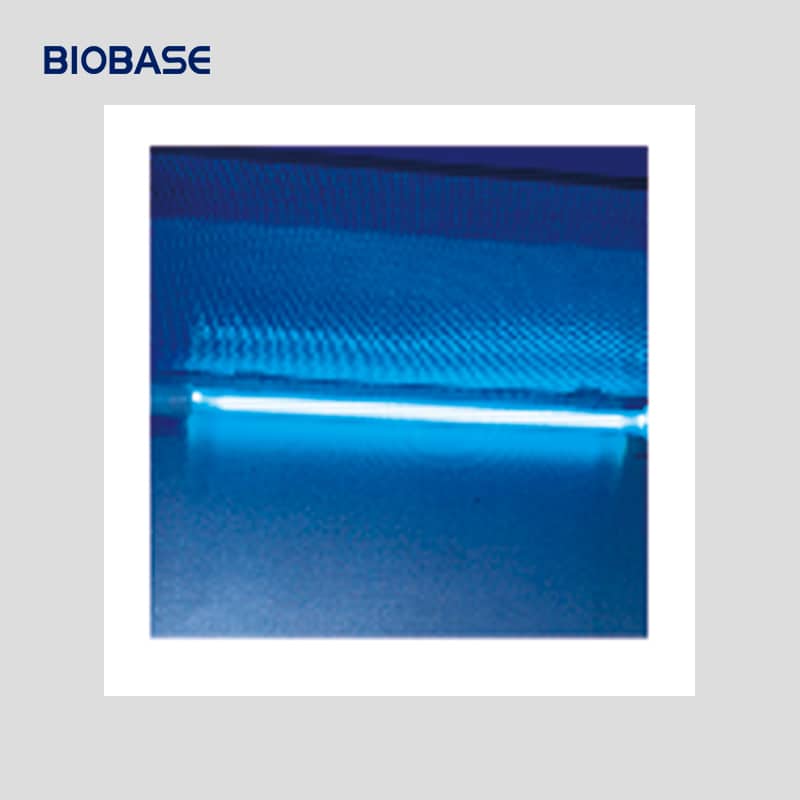

UV Lamp15W*1 20W*118W*130W*1
 Emission of 253.7 nanometers
 Consumption 160W 350W 350W600W
Standard AccessoryFluorescent lamp, UV lamp*2

Water & gas tap

LED Lamp

UV lamp*2

Base stand

LED Lamp

UV lamp*2

Base stand

LED Lamp

UV lamp*2

Base stand

Optional Accessory/Electric height adjustable base stand
 Caster/ Universal wheel with leveling feet
 Power Supply AC 220V±10%, 50/60 Hz; 110V±10%, 60HZ
 Gross Weight 50kg 116kg 131kg174kg
 Package Size (W*D*H)mm 840*560*1380 960*800*1800 1200*850*13601600*850*1360

Standard Accessory:

Fluorescent lamp 1pc

UV lamp*2( for all models )

Water & gas tap (for model BBS-V680)

Base stand (except model BBS-V680)
