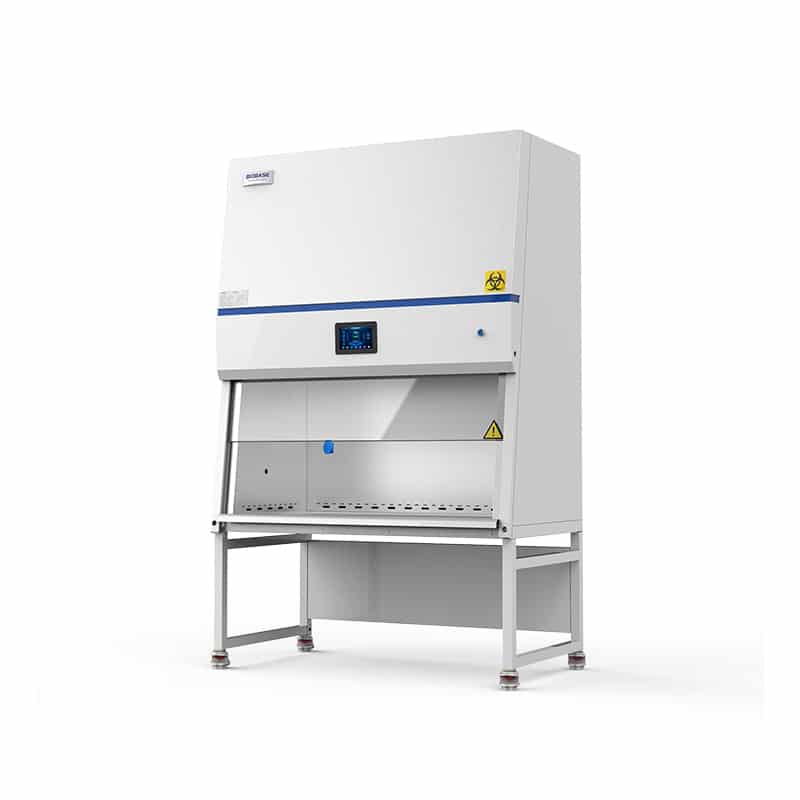

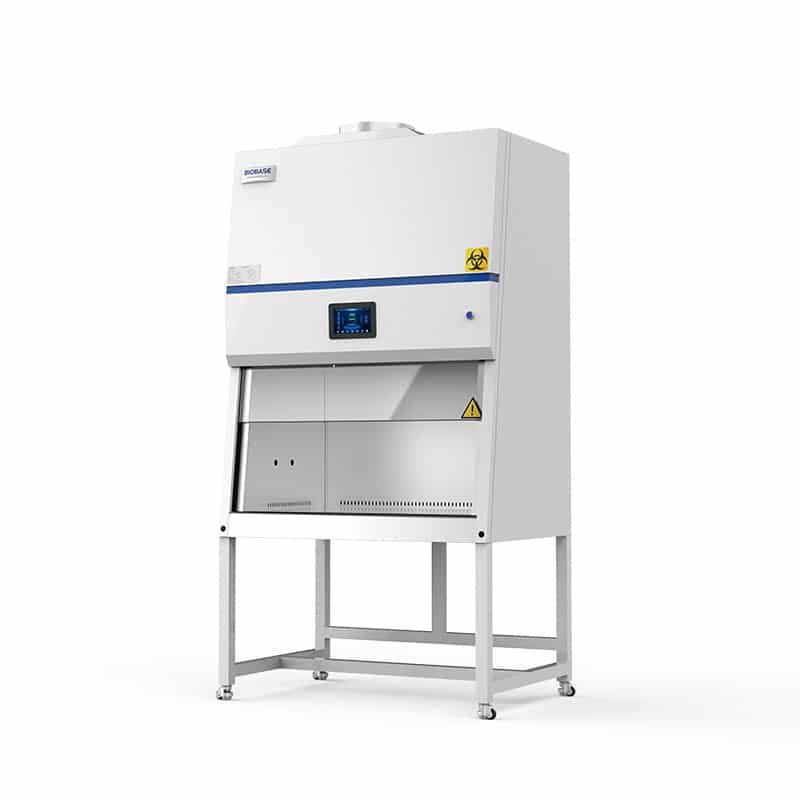

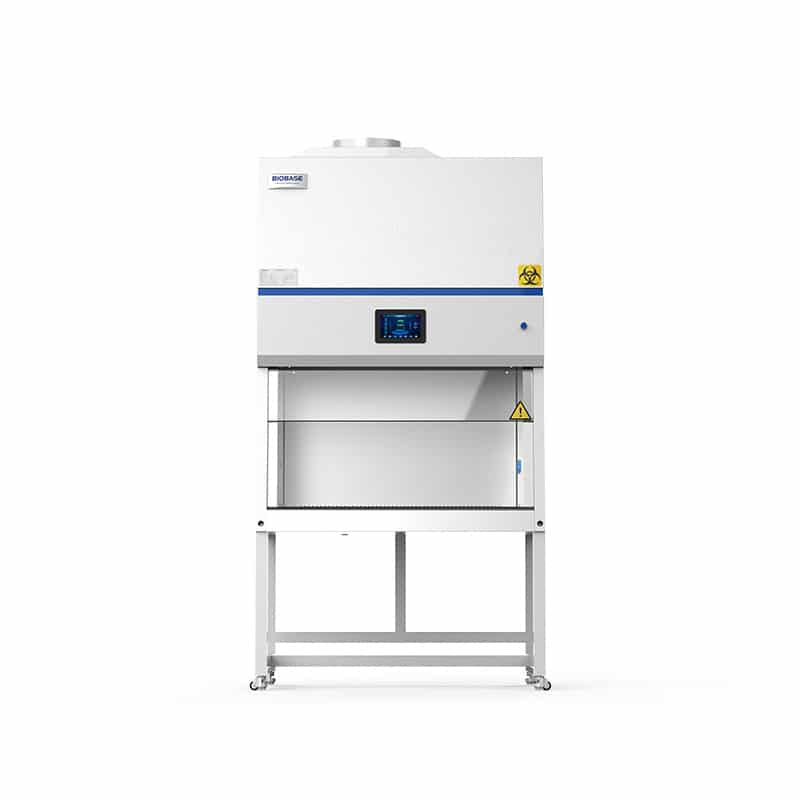

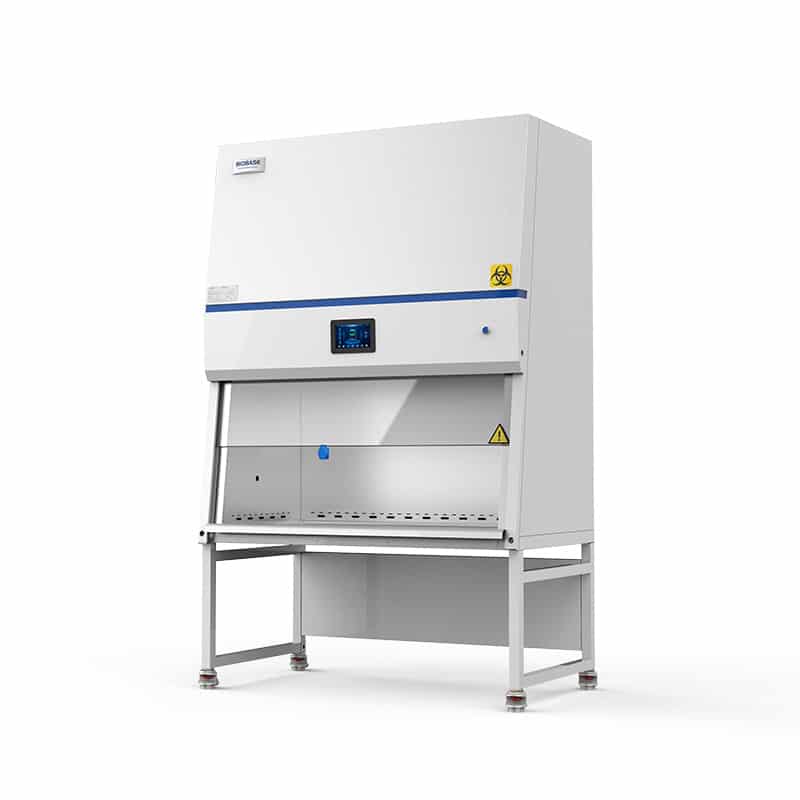

Class II A2 Biological Safety Cabinet BSC- PROseries

ADVANTAGE：

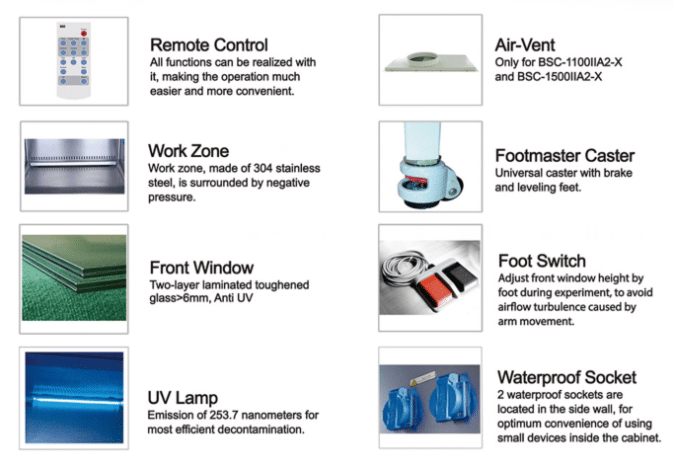

1. The operation perspective is wide and more humanized.

2. Time reserve function.

3. ULPA filter life and UV life indicator.

4. Motorized front window.

5. With memory function in case of power-failure.

6. Audio and visual alarm (Abnormal airflow velocity; Filter replacement; Front window at unsafe height; High filter pressure alarm ).

7. Self-locking button switch to solve the trouble of losing the key.

8. 7 inch Large touch screen with Intelligent control system: Operators can check detailed status of the cabinet, such as inflow and downflow velocity, work area temperature and humidity, filter pressure, UV working time and filter working time, filter life indicator etc.

9. Remote control: all functions can be realized with it, making the operation much easier and more convenient.

10. Interlock function: UV lamp and front window; UV lamp and blower, LED lamp; blower and front window.

11. Foot switch: adjust front window height by foot during experiment, to avoid airflow turbulence caused by arm movement.

Models：

Model	BSC-1100IIA2-Pro	BSC-1300IIA2-Pro		BSC-1800IIA2-Pro
External Size(WDH)	11007502250mm	13837752295mm		18707502290mm
Internal Size(WDH)	940600660mm	1210600660mm		1710600660mm
Tested Opening	Safety Height 200mm(8″)
Max Opening	420mm(17″)	500mm (20″)	520mm(21″)
Inflow Velocity	0.53±0.025 m/s
Downflow Velocity	0.33±0.025 m/s
ULPA Filter	Two, 99.9995% efficiency at 0.12μm. Filter life indicator.
Front Window	Motorized. Two-layer laminated toughened glass ≥ 6mm. Anti UV.
Noise	≤ 67dB
UV Lamp	30W*1	30W*1		40W*1
	UV timer, UV life indicator, emission of 253.7 nanometers for most efficient decontamination.
Illuminating Lamp	LED lamp
	12W*2	12W*2		16W*2
Illumination	≥1000Lux
Consumption	1100W	1800W		1800W
Waterproof Sockets	Two, total load of two sockets: 500W
Display	7 inch touch scren display: exhaust filter and downflow filter pressure, filter and UV lamp working time, inflow and downflow velocity, filter life, humidity and temperature, system working time etc.
Control System	Microprocessor
Airflow System	70% air recirculation, 30% air exhaust
Visual and audio alarm	Abnormal airflow velocity, Filter replacement, Front window at unsafe height, High filter pressure alarm.
Material	Work Zone: 304 stainless steel Main Body: Cold-rolled steel with anti-bacteria powder coating.
Work Surface Height	750mm(Size can be customized according to requirements)
Caster	Footmaster caster
Power Supply	750mm(Size can be customized according to requirements)
Standard Accessory	Footmaster caster
Optional Accessory	750mm(Size can be customized according to requirements)
Gross Weight	265kg	340kg			430kg
Package Size(WDH)	12509901770mm	154010801910mm			200010751910mm
