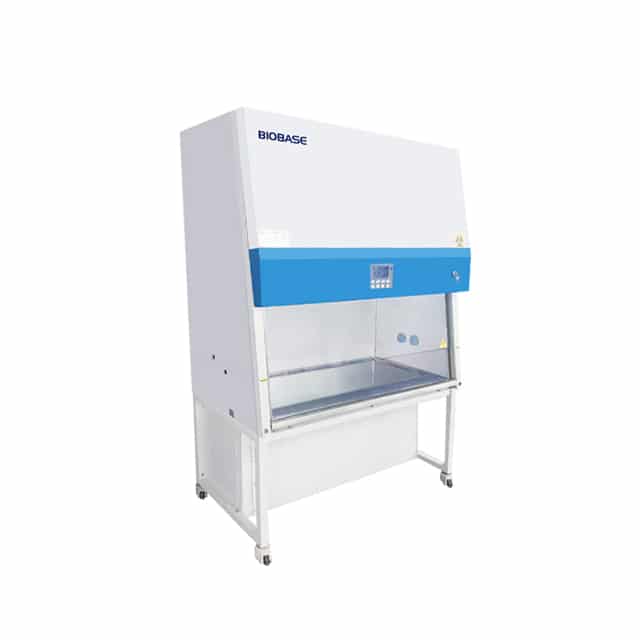

Cytotoxic Safety Cabinet

Biological Safety Cabinet is necessary equipment in the laboratory in the search of microbiology, biomedical, DNA recombinant, animal experiment, and biological products, especially in the occasion that operator need to adopt protective measure, such as medical and health, pharmacy, medical research. Our equipment provides a safety working environment which don’t have bacterial and dust in the process of bacterial culture.

Category:

Models:

Model11224BBC8611234BBC86
External size(W*D*H)1087*760*2100mm1380*760*2100mm
Internal size(W*D*H)910*600*630mm1220*600*630mm
Tested OpeningSafety Height 200 mm（8’’）
Max Opening440mm(17’’)
Internal Work Area,space0.55m30.73m3
Inflow Velocity0.53 m/s
Down Flow Velocity0.33 m/s
Exhaust Volume347m3/h (204cfm)465m3/h (273cfm)
Air Supply FilterULPA filter,efficiency＞99.9995% for particle size at 0.12 μm
Exhuast Filter2pieces ULPA filters, efficiency＞99.9995% for particle size at 0.12 μm.

Fiter life indicator and filter working time indicator.

AlarmAbnormal airflow velocity; Filter replacement; Front window at unsafe height
Noise≤ 67 dB

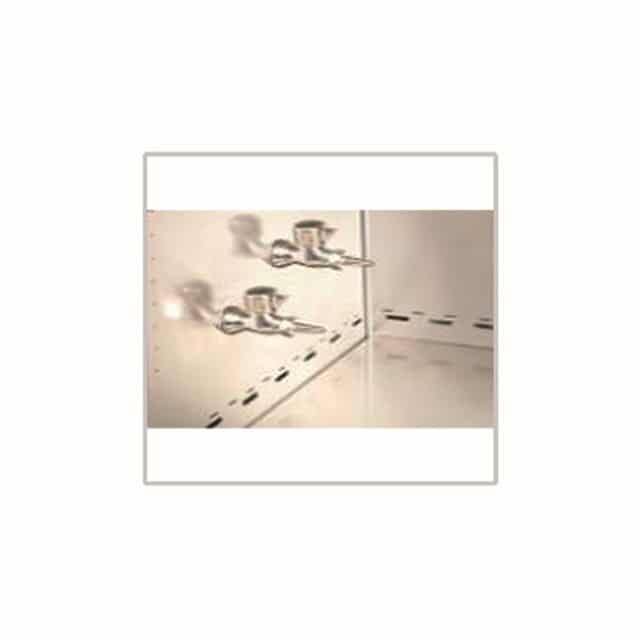

Water &Gas TapWater Tap*1,Gas tap*1
UV lamp20 W*130 W*1
Emission of 253.7nanometers for most efficient decontamination
UV life indicator, UV timer
LEDLamp12 W*216 W*2
Illumination≥1000 lux
Consumption700 W900 W
Waterproof SocketTwo ; Total load of two sockets :≤500W

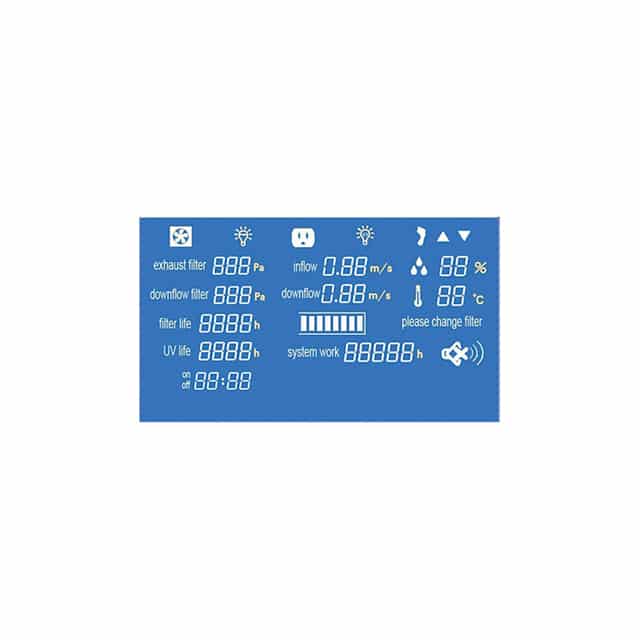

DisplayLCD Display
Control SystemMicroprocessor
Humidity and TemperatureHumidity and temperature can be displayed on the control panel
MaterialWork Area:304 stainless steel

Main Body :Cold-rolled steel with anti-bacteria powder coating

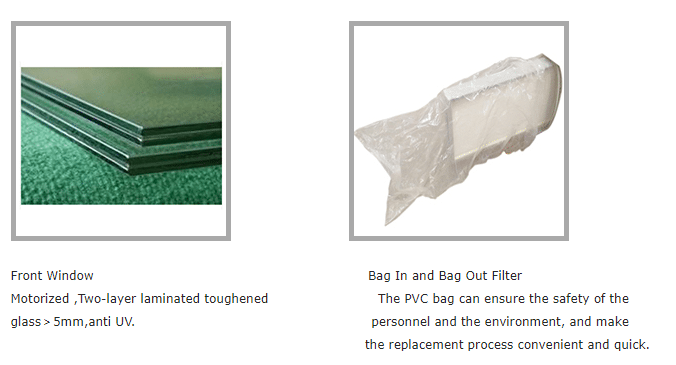

Front WindowMoterized,two-layer laminated 5mm toughened glass≥5mm,anti UV.
CasterFootmaster Caster
Power supplyAC220V± 10%,50/60HZ；110V±10%，60HZ

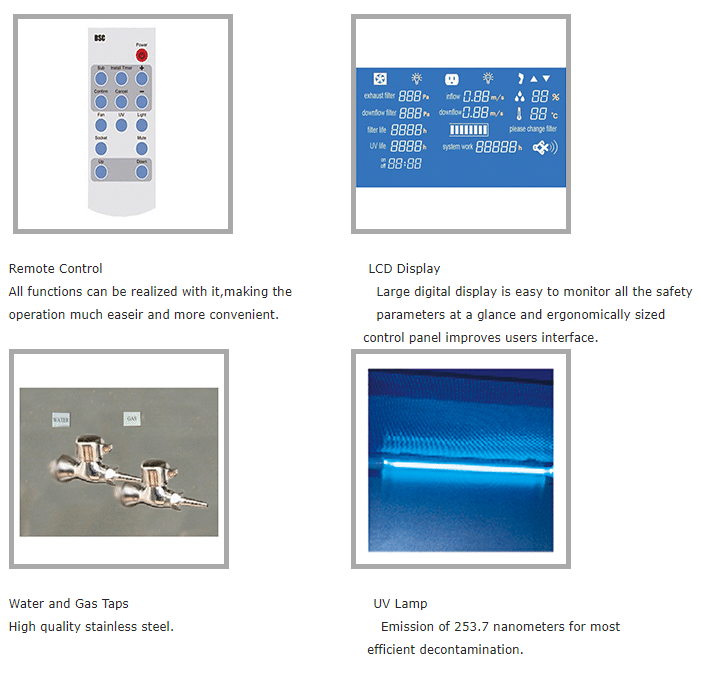

Standard ConfigurationBase stand, Drain valve, waterproof sockets*2, Remote control,  UV lamp*2 and LED Lamp,Water tap ,Gas tap
Optional AccessoryArmrest,Formalin fumigation sterilizer,infrared sterilizer, Airflow tester,PVC duct
Gross weight320kg371kg
Package Size(W*D*H)1240*910*2280mm1540*910*2280mm

Standard Accessory:

Base stand                    1pc.

Drain valve                    1pc.

Waterproof sockets       2pcs.

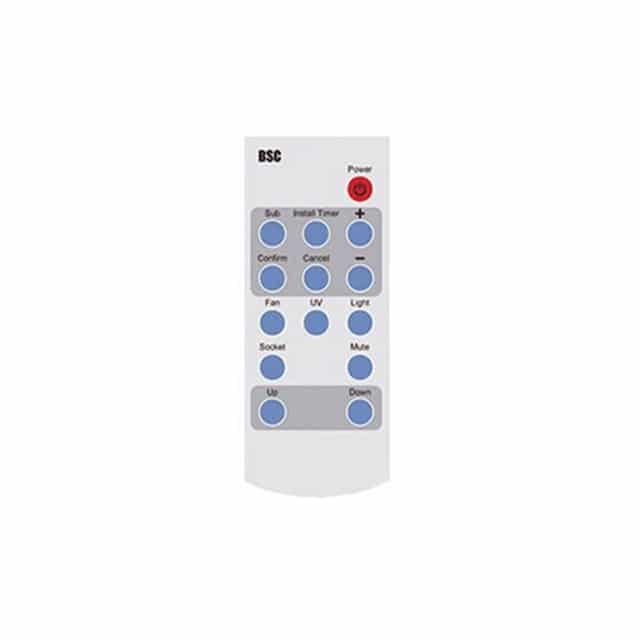

Remote control              1pc.

Foot switch                    1pc.

UV lamp                         2pcs.

Fluorescent lamp            1pc.

Water tap                       1pc.

Gas tap                           1pc.



Optional Accessory:

Armrest

Formalin fumigation sterilizer

Infrared sterilizer

Airflow tester

PVC  duct
