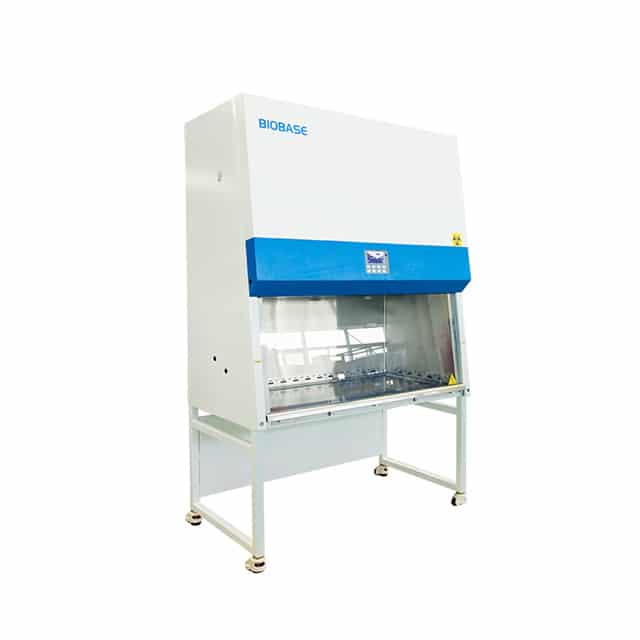

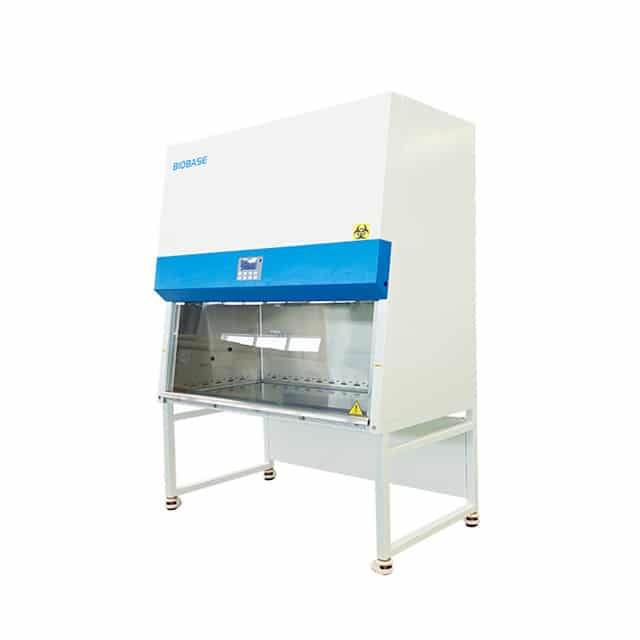

NSF Certified Class II A2 Biological Safety Cabinet

Advantages:

1. Motorized front window.

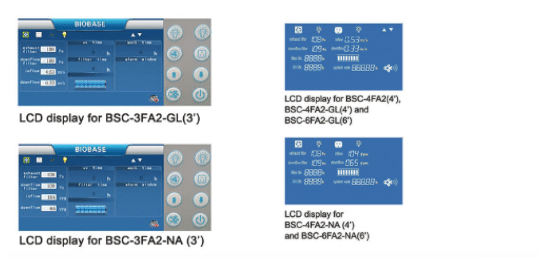

2. Large LCD display, all information displayed.
3. Automatic air speed adjustable with filter block.
4. With memory function in case of power-failure.
5. Side & back wall is made up of single piece stainless steel.
6. Interlock function: UV lamp and front window; UV lamp and blower, fluorescent lamp; Blower and front window.
7. Front 10° slanted to offer operator comfort while working for long time, reduce glare and maximize reach into the work area.

Models:

Model		BSC-4FA2(4′)	BSC-3FA2-GL(3′) BSC-3FA2-NA(3′)	BSC-4FA2-GL(4′) BSC-4FA2-NA(4′)	BSC-6FA2-GL(6′) BSC-6FA2-NA(6′)
External Size(WDH) Internal Size(WDH)		13837752295mm 1210600660mm	10877752265mm 910600660mm	13837752295mm	1873775229mm
				1210600660mm	1700600660mm
Work Surface Height Max Opening Tested Opening		750mm with optional base stand
		550mm (22’’)	520mm(20.5’’)	550mm (22’’)	550mm (22’’)
		Safety height 200mm (8”)	Safety height 254mm (10’’)
Airflow Volume	Inflow	462m3/h(272cfm)	441m3/h(259cfm)	587m3/h(346cfm)	824m3/h(485cfm)
	Down flow	65%:863m3/h(507cfm)	60%:649m3/h(382cfm)	60%:863m3/h(507cfm)	60%:1212m3/h(713cfm)
	Exhaust	35%:462m3/h(272cfm)	40%:445m3/h(259cfm)	40%:587m3/h(346cfm)	40%:824m3/h(485cfm)
Front Window HEPA Filter		Motorized. Two-layer laminated toughened glass ≥5mm. Anti UV Two, 99.999% efficiency at 0.3μm, filter life indicator
Filter Guard Type Noise		Aluminum alloy frame , glass filter paper NSF 49≤67 dB/EN 12469≤65 dB
Illumination Display		≥1000Lux LCD Display
Waterproof Socket Tap Ground Resistance		2, Total consumption:≤500W Water tap1, Gas tap 1 ≤ 0.10Ω
Power Supply		AC220V±10%, 50/60Hz; 110V±10%, 60Hz, Full load Amps: 9A, BTU/Hr: 1689
Consumption		500W	400W	500W	700W
Alarm DC Motor		Abnormal airflow velocity; Filter replacement; Front window at unsafe height. One ECM motor, 110V& 220V acceptable, Speed adjustable, high efficiency and low power consumption
Material		Working area: 304stainless steel Frame and Decorative Plate: cold-rolled steel with anti-bacteria power coating
UV Lamp		30W	20W	30W	40W

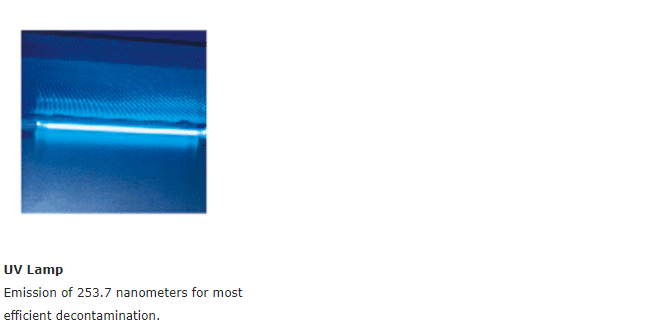

		Germicidal UV lamp, Emission of 253.7 nanometers for most efficient decontamination
Illuminating Lamp		18W*2	10W*2	18W*2	22W*2
		LED lamp

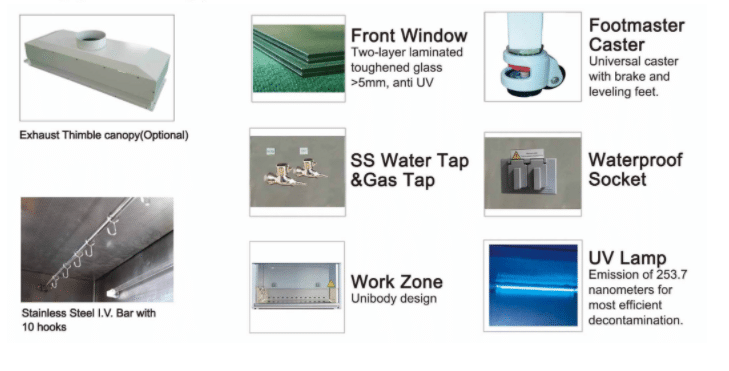

Standard Accessory		Illuminating lamp, UV lamp *2, Base stand, SS water & gas taps, Drain valve, Waterproof sockets, Stainless Steel I.V. Bar with 10 hooks
Optional Accessory		Armrest, Airflow tester, Formalin fumigation sterilizer, Infrared sterilizer, Electric height adjustable base stand, Remote control
Package Size (WDH) Gross Weight		154010801900mm 334kg	124010601900mm 270kg	154010801900mm 340kg	202010801900mm 370kg
